- Place of Origin: china
- Brand Name: LIAN XIN PLASTIC
- Model Number: LXSJ-55
品牌 联信 型号 50 产品别名 TPE密封条机 门窗胶条机 封边条设备
产品用途 生产包边条、型材、密封条、封边条达 种类 异型材挤出机 螺杆数 单螺杆
螺杆直径 50(mm) 最大挤出直径 40(mm) 生产能力 35(Kg/h)
定位精度 1(mm) 外形尺寸 12000(mm) 电动机功率 11(kw)
PVC edge banding extruder Sealing side doors and Windows profile production line is also called the sealing strip extruder, plastic production line edge banding, TPE profile extrusion machine, stationery
Article extruder, TPE strip production line, TPR sealing strip production line, PVC doors and Windows sealing strip production line, doors and Windows sealing strip equipment, TPR sealing strip
PVC sealing strip machine, extrusion machine, sealing strip production line, PVC bag side of the extruder, doors and Windows package edge production lines, PVC profile extrusion machine, PVC profiles
Production line, single screw extruder. Service concept
My company to lead the development of Chinese extruder as the guidance, to forge ahead, the spirit of the pursuit of excellence, professional committed to the plastic extruding equipment
Development, design and production. The company fully implementing strict ISO9001:2000 quality management system, and won the European Union ?
Product introduction
The device is based on Europe's most advanced technology, our company successfully developed many new models of edge sealing strip, the folder bag extruder, furniture profiles
Extruder, etc., with professional screw design, make its have low shear, low melting temperature, extruding speed stability, etc.
Special request: can be applied to PVC/TPR/TPE/TPU/PU thermoplastic pipes, plate, sheet, rod, profiles and plastic granulation processing
. According to different raw materials and products specifications, screw with different length to diameter ratio and compression ratio, barrel with different structure. Choose the right machine barrel,
Screw and drive mechanism, in order to satisfy the demands of the processing of high quality products.
(1) extrusion parts: for production such as seal section of small size mechanical production generally choose the single screw extruder or co-extrusion molding processing,
In order to avoid waste of resources and energy production. Single screw extruder selection depends on two main factors: one is products section size; The second is to produce
Quantity requirements. The greater the extrusion production, the greater the screw diameter; Different profile cross section area of big dimensions (large), screw diameter.
(2) the extrusion die, extrusion die is a major part of the products forming, its effect is will provide cylindrical melt extrusion machine continuously and evenly into plastic
Good, and the channel cross-section and the geometric size of similar type of culture. After cooling, and other process, get a good performance
(3) after heating parts: cooling finalize the design on the installation of water tank and water circulation system, water tank stainless steel material is qualitative, cooling circulating water spray cooling,
On a mobile device and the left and right sides, before and after high and low adjusting device.
(4) traction part: tractor is used for continuously and automatically to have cooling hardening sealing strip from the head office, as the frequency control of motor speed.
(5) cutting collecting part: according to the required length by travel switch control, automatic cutting, and time delay, the water production, the cutting machine to decide
Permanent switch signal as the instruction, complete the whole cutting process, in the process of cutting and profile running in sync, cutting process completed by electric and pneumatic drive,
? cutting machine is equipped with suction device, will be cut
Characteristics of the equipment
Low high output, low energy consumption.
Screw geometry parameters, the design is reasonable, for different raw materials, do different products, the screw has different length-diameter ratio and structure, meet the needs of different customers.
Low cylinder heating section are open groove and smooth section of two kinds of structure, meet the needs of different materials.
Low screw, cylinder adopt high-performance alloy steel, wear resistance, corrosion resistance, high strength, etc.
"There are compact and reasonable design, convenient operation, simple maintenance.
Scope of application
Single screw extruder with different die, can produce all kinds of monochrome pipe, plastic rods, plastic plate, seal, sealing side, rubber band, PC tubes,
Many domains such as medical tubes, decorative plates.
Service commitment
Pre-sale service: provide free advisory services, technical support, liaison and other demand.
Medium-sales service: provide delivery, installation, commissioning, operator training and other services.
After-sales service: the machine one year warranty, life-long maintenance.
After debugging installation: confirm the delivery of machinery, the buyer ready to complete the required items and inform us, we will arrange personnel to the place of the machine within 48 hours;
Such as traffic inconvenience or remote, our staff will arrive within 72 hours to arrange personnel and installation and debugging.
Operation training, debugging personnel training in the on-site installation and debugging, the buyer should arrange one or more designated personnel training, until the operation
Can independent operation.
- Place of Origin: china
- Brand Name: LIAN XIN PLASTIC
- Model Number: LXSJ-55

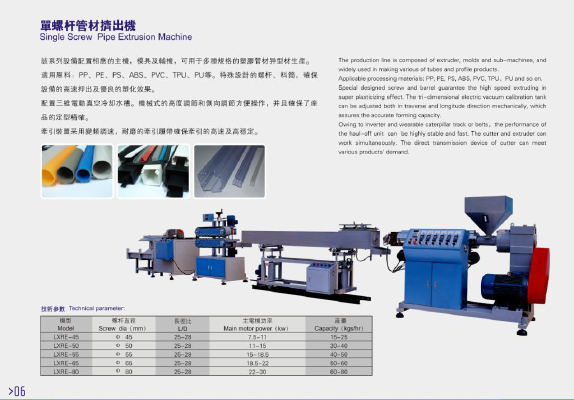

技术参数
机型 螺杆直径 长径比 主电机功率 产量
LXRE-45 Φ45 25-28 7.5-11 15-25
LXRE-50 Φ50 25-28
11 30-40
LXRE-55 Φ55 25-28 11-15 40-50
LXRE-65 Φ65 25-28 22-30 55-80
