- Place of Origin: china guangzhou
- Brand Name: LIAN XIN PLASTIC
- Model Number: LXSJ-50

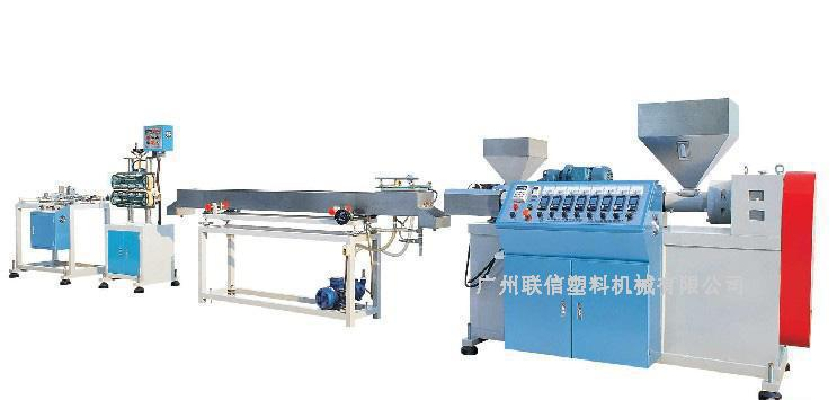

Drink straw extrusion machine (Single color, multicolor drink straw)
This production line consists of main extruder, die, water tank, and haul-off and cutting device. Single-color, two-color and multi-color drink straw extruding lines are available.
Equipped with corresponding die then can produce drink straw, nozzle, cotton slip, lollipop stick, toy tube and other small industrial tube.
Automatic pipe bender
Automatic forming machine can bend straw is drinking straw making unit equipment, it will drink straws for secondary processing, make drinking straw can be curved straw.
1. Compact structure, convenient operation, high degree of automation.
2. Count power capacity, and can batch report to the police.
Straw packing machine
Packing specification: L: 210 ~ 230 / D: 3.0 to 6.0 mm
Packaging materials: BOPP
Production capacity: 200-250 m/min
Machine size: about L1000mm * H600mm W400mm
- Place of Origin: china guangzhou
- Brand Name: LIAN XIN PLASTIC
- Model Number: LXSJ-50
螺杆数量: 单螺杆 产品别名: 饮料吸管机 产品用途: 牛奶饮料管 电动机功率: 11 kw
定位精度: 1 mm 螺杆直径: 50 mm 生产能力: 30-40 Kg/h 售后服务: 保修一年
外形尺寸:8500 mm 种类: 挤出机 品牌: 联信塑机 型号: 50
最大挤出直径:13 mm
型号 螺杆直径 长径比 主电机功率(Kw) 产品直径 (mm)
Model Screw dia(mm L/D Main motor(Kw) Product size (mm)
单色 Ф50 25 7.5 Ф1-Ф10
One color
双色 Ф50*1 25 7.5 Ф1-Ф13
Two-color
Ф25*1 0.75*1
三色 Ф50*1 25 7.5 Ф1-Ф13
Three-color
Ф25*2 0.75*2
